Recirculating
Coolers/Chiller...... the NEW 'FL' series |
|
|
|
page: |
|
|
|
Models
FL2503 through
FLW4006 |
|
These powerful recirculating coolers provide high cooling
capacities, a strong pump performance and a bath volume of
up to 27 liters so that high power reserves are available
for constant cooling of the
external system. |
|
Benefits
of models
FL2503 through FLW11006:
° Early warning function
with sensor monitoring to
signal a dirty condenser
° Pump
motor and compressor
overload protection (on all
models)
° Online diagnosis with
'Black Box' function
° Low water consumption on
all FLW models |
|
Pump
capacities
Bath fluid: Water |
|
|
|
|
|

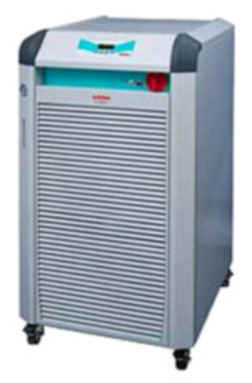

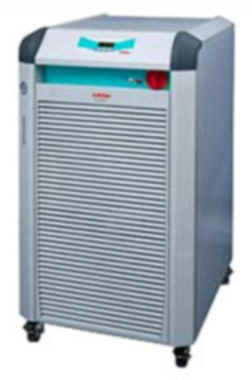

FL2503
through FL4006
|
|
|
FLW2503
through FLW4006
|
|
|
|
|
|
|
|
|
| Recirculating Coolers/Chiller |
| |
Technical features
|
Order
No |
Model |
Working
temp.
range °C |
Temp.
Stab.
°C |
Cooling
capacity
KW
+20 ±0 -10°C |
Pump
capacity
Flow rate/Press.
l/min.
bar |
Filling
volume
liters |
Dimensions
W x L x H
cm |
Weight
kg |
Power
requirement
V/Hz |
| 9663025 |
FL2503 |
-20
... 40
|
±0.5 |
2.5
1.5 1.2 |
60 0.5
... 3.0 |
19
... 27 |
60
x 76 x 115 |
123 |
230~50
or 230~/60 |
| 9666025 |
FL2506 |
-20 ... 40
|
±0.5 |
2.5
1.4 1.1 |
80
0.5 ... 6.0 |
19
... 27 |
60
x 76 x 115 |
130 |
230~50
or 230~/60 |
| 9663040 |
FL4003 |
-20
... 40 |
±0.5 |
4.0
2.4 1.5 |
60
0.5 ... 3.0 |
19
... 27 |
60
x 76 x 115 |
123 |
3x400~50
or 3x230~/60 |
| 9666040 |
FL4006 |
-20
... 40 |
±0.5 |
4.0
2.3 1.4 |
80
0.5 ... 6.0 |
19
... 27 |
60
x 76 x 115 |
130 |
3x400~50
or 3x 230~/60 |
|
Recirculating Coolers (water-cooled) |
| |
|
9673025 |
FLW2503 |
-20 ...40 |
±0.5 |
2.7
1.7 1.3 |
60 0.5
... 3.0 |
19
... 27 |
60
x 76 x 115 |
127 |
230~50
or 230~/60 |
|
9676025 |
FLW2506 |
-20 ...40 |
±0.5 |
2.7
1.6 1.2 |
80
0.5 ... 6.0 |
19
... 27 |
60
x 76 x 115 |
135 |
230~50
or 230~/60 |
|
9673040 |
FLW4003 |
-20 ...40 |
±0.5 |
4.3
2.5 1.6 |
60 0.5
... 3.0 |
19
... 27 |
60
x 76 x 115 |
127 |
3x400~50
or 3x 230~/60 |
|
9676040 |
FLW4006 |
-20 ...40 |
±0.5 |
4.3
2.4 1.5 |
80
0.5 ... 6.0 |
19
... 27 |
60
x 76 x 115 |
135 |
3x400~50
or 3x 230~/60 |
|
| |
|
|
